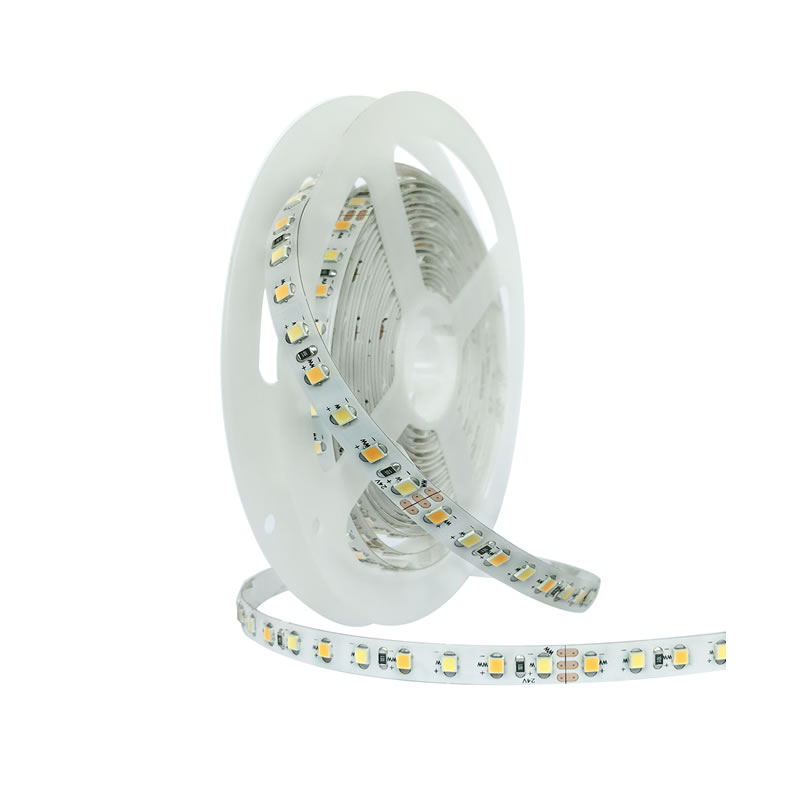

2835SMD LED Strip Series

Vishow light's 2835SMD series LED Strip come with
1. High brightness, good uniformity, long life time Epistar or San'an LED chip
2. Brand driver of Lifud can be offered accordingly
3. Double layer pure Copper PCB to ensure good thermal dissipation and current protection
4. Different LED quantity with different power for option. 30led/m,60led/m,120led/m,240led/m
5. Waterproof IP20,65.67,68 for option
6. Genuine 3M tape to support the installation and usage
7. White rell+Customized package for best package condition for you

Description and Specification

2835SMD LED Strip Series


It is available for 12V,24V, and High voltage version. (Defult as low voltage, so need to specify the voltage in advance)

30LEDS, 60LEDS,120LEDS,240LEDS,480LEDS per meter for option with different width of PCB. 5m/roll as the stardard package.

Waterproof IP20,65,67,68 for option


1. Epistar chip or San'an Chip to provide high lumen output and low brightness dissipation and long time span
2. Double layer of pure copper Fpbc with excellent thermal conductive performance to guarrante the long working tieme
3. Cuttable of 3leds of 12V version and 6leds of 24V version
4. Proper resistance used. right resistance used with well-placed and good current controlling to protect the leds from failure
5. 3M Tape. Genuine 3m tape with thin shape and strong adhesive for convinient installation and usage
6. Insulation: igh quality heat shrink sleeve are used on the wiring end to make sure the safety, 15cm cable length, red for R,green for G, blue for B, white for W and black for +"

7. Reel, white reel to improve the package grate

8. Label or package: Customized ones acceptable




Specification
 Product type2835smd LED strip Type Of Driver Lifud, or other
 Brand Of Chip Epistar/san'an Brand Vishow
 Color Temperature  Digital RGB CRI ?80,>90
 Beam Angle 120 Operating Temperature -20~+45
 Voltage DC12/24V Controller type SD,DMX512..
 Cut-Size 3/6LED/cut Dimension *500cm
 Materials Copper pcb+LEDs Power/m intheory W/m to LEDs
 PCB color White/yellow/black Working time30000hrs
 Safety linsting: CE RoHS compliant Warranty: 2yrs or extent
 ApplicationAll place or environment for decoration and where needs waterproof light fixture


Installation

2835SMD LED Strip Series


Application

2835SMD LED Strip Series

1) Home Furnishing light and colorful life, DIY home light corridors, stairs,trails,Windows.

2) Hotel decoration, theatre, club, shopping mall, festivals and performances.
3) Building decoration lighting, arch, crown and bridge edge lighting, safety lighting and emergency.
4) Widely used in sign letter backlighting, concealed lighting and advertising sign lighting.
5) Applicable to car and aircraft model decoration, contour lighting or borde

2835SMD LED Strip Series
