High voltage 5050SMD LED Strip
Vishow light's high voltage 5050smd flexible strip with IP67 as standard
1. Works with 220V or 110V AC please specify before ordering
2. All single colors or RGB available
3. CRI70,80.90,95 for option
4. It can be cut at will, but please pay attentioned to the ending waterproof issue.
5. 50m/roll or 100m a roll
Vishow light's High voltage 5050SMD LED Strip
60leds/m,120leds/m with 100m/roll or 50m a roll, dimmable available
1. Epistar chip to provide high lumen output and low brightness dissipation and long time span
2. Double layer of pure copper Fpbc with excellent thermal conductive performance to guarrante the long working tieme
3. Cuttable of 3leds of 12V version and 6leds of 24V version
4. Proper resistance used. 151 resistance used with well-placed and good current controlling to protect the leds from failure
5. 3M Tape. Genuine 3m tape with thin shape and strong adhesive for convinient installation and usage
6. Insulation: igh quality heat shrink sleeve are used on the wiring end to make sure the safety, 15cm cable length, red for R,green for G, blue for B, white for W and black for +"
7. Reel, white reel to improve the package grate
8. Label or package: Customized ones acceptable
| Specification | |||
| Product type | High voltage 5050smd LED strip | LED quantity | 60leds/m |
| Brand Of Chip | Epistar/san'an | Brand | Vishow |
| Color Temperature | All single color/RGB | CRI | ?80 |
| Beam Angle | 120 | Operating Temperature | -20~+45 |
| Voltage | AC110,220V | Controller type | SD,DMX512.. |
| Cut-Size | 1M/cut | Dimension | 1.45*1.75mm |
| Materials | Copper pcb+LEDs | Power/m intheory | 14.4w/m |
| PCB color | White/yellow/black | Working time | 30000hrs |
| Safety linsting: | CE RoHS compliant | Warranty: | 2yrs or extent |

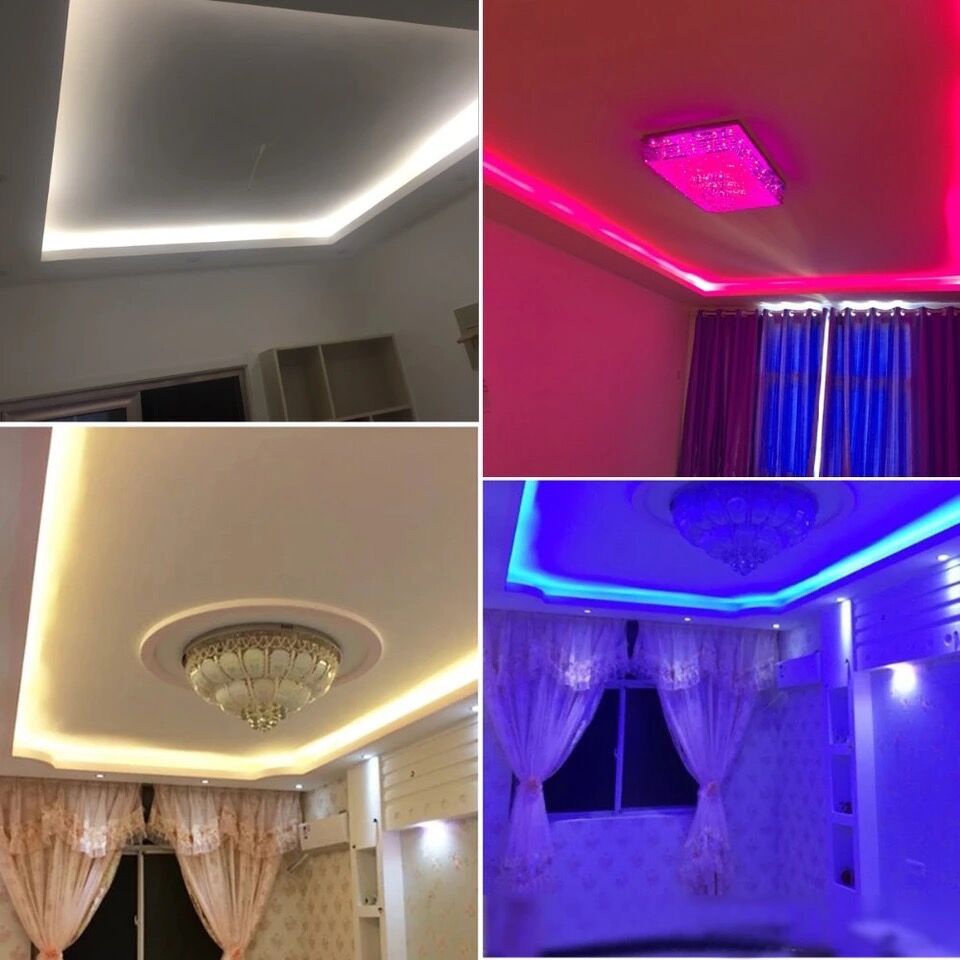

| Application | All place or environment for decoration and where needs waterproof light fixture | ||
Plug into the electric supply directly!

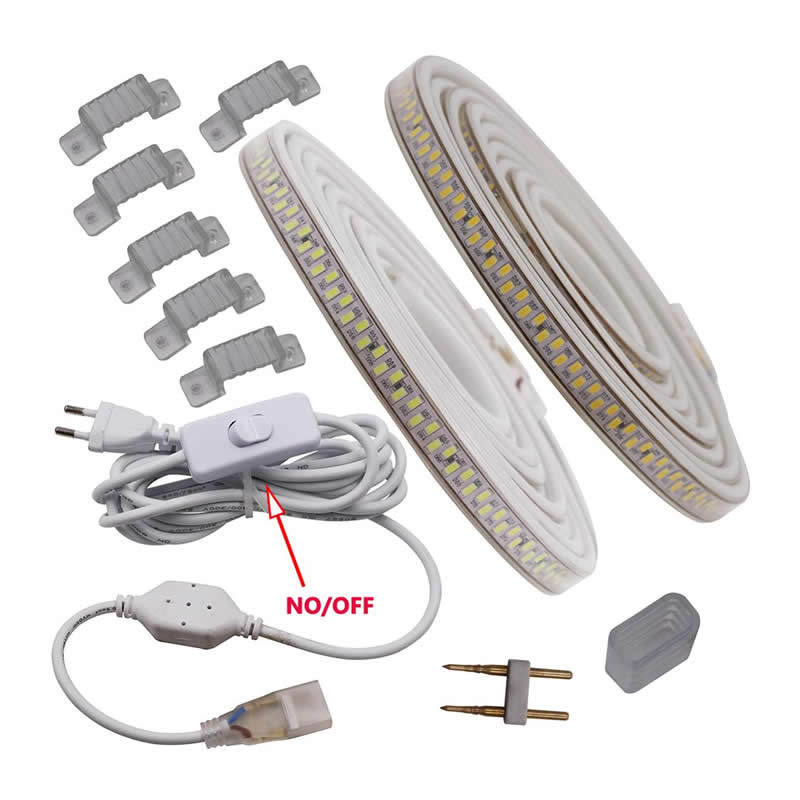

Below is the operation guide after cutting. and the accessories for connecting.(Should be ordered seperatly.)
