New 5050SMD RGBW 4IN1 LED Flexible Strip
New 5050smd RGB 4in1 LED flexible strip
1. Epistar chip to provide high lumen output and low brightness dissipation and long time span
2. Double layer of pure copper Fpbc with excellent thermal conductive performance to guarrante the long working tieme
3. Cuttable of 3leds of 12V version and 6leds of 24V version
4. Proper resistance used. 151 resistance used with well-placed and good current controlling to protect the leds from failure
5. 3M Tape. Genuine 3m tape with thin shape and strong adhesive for convinient installation and usage
6. Insulation: igh quality heat shrink sleeve are used on the wiring end to make sure the safety, 15cm cable length, red for R,green for G, blue for B, white for W and black for +"
Vishow light's new 5050SMD RGB4in1 LED flexible strip

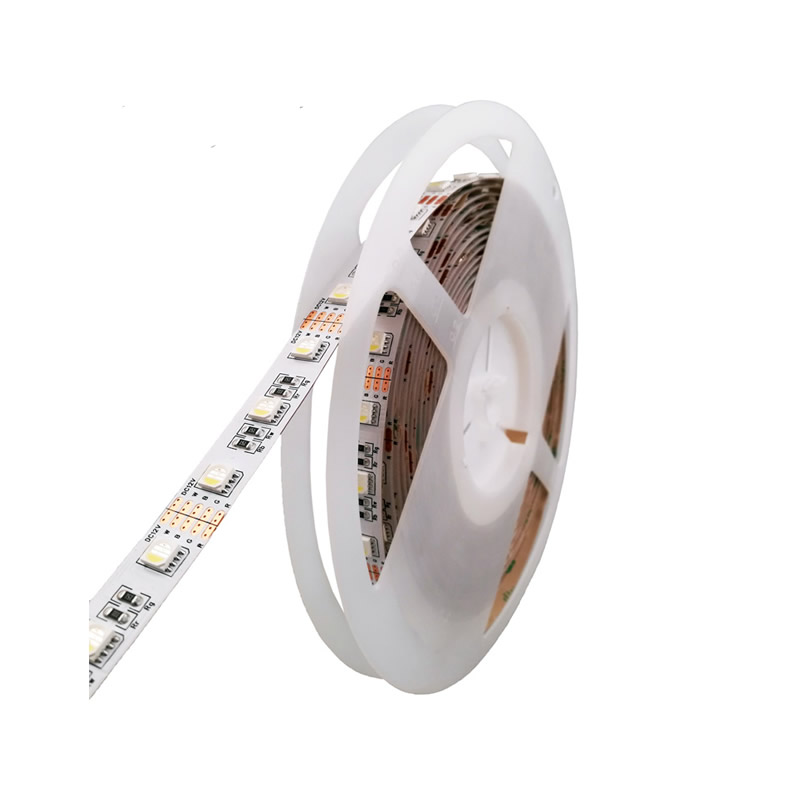

New 5050smd RGB 4in1 LED flexible strip. 60leds/m,72leds/m,86leds/m,96leds/m
with 5m/roll! IP20,65,67,68 for option
1. Epistar chip to provide high lumen output and low brightness dissipation and long time span
2. Double layer of pure copper Fpbc with excellent thermal conductive performance to guarrante the long working tieme
3. Cuttable of 3leds of 12V version and 6leds of 24V version
4. Proper resistance used. 151 resistance used with well-placed and good current controlling to protect the leds from failure
5. 3M Tape. Genuine 3m tape with thin shape and strong adhesive for convinient installation and usage
6. Insulation: igh quality heat shrink sleeve are used on the wiring end to make sure the safety, 15cm cable length, red for R,green for G, blue for B, white for W and black for +"
7. Reel, white reel to improve the package grate
8. Label or package: Customized ones acceptable
| Specification | |||

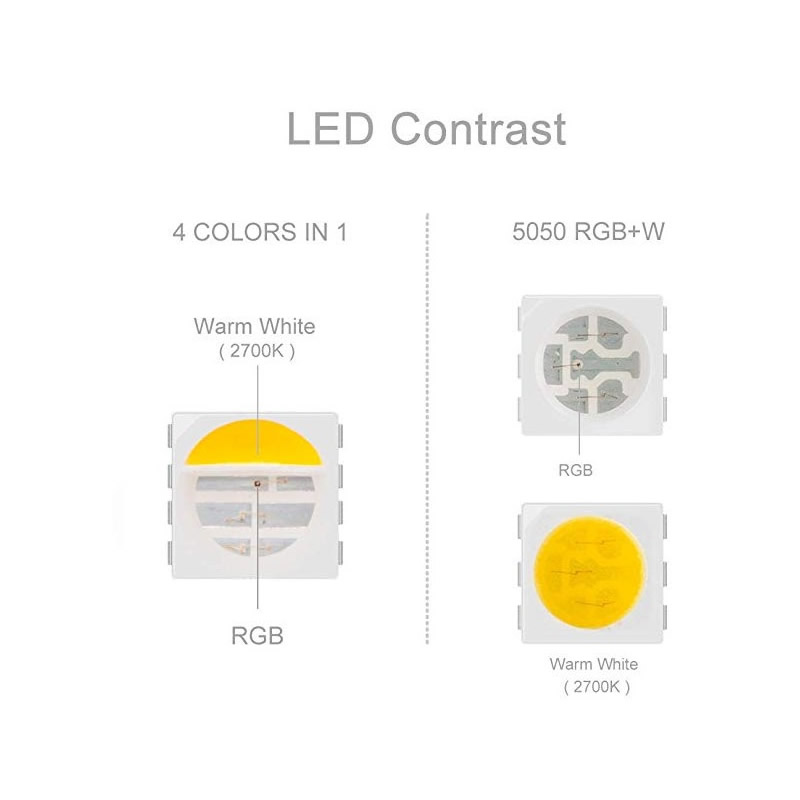

| Product type | 5050SMD rgbw 4 in 1 flexible strip | Type Of Chip | RGB+W 5050SMD |
| Brand Of Chip | Epistar | Brand | Vishow |
| Color Temperature | RGB+W/MW/NW | CRI | ?80,>90 for opt |
| Beam Angle | 120 | Operating Temperature | -20~+45 |
| Voltage | DC12V/24V | Theory Wattage | 19.2W/m of 60leds version |
| Cut-Size | 3leds/6leds | Dimension | 10*H4mm |
| Materials | Copper pcb+LEDs | Color perforamce | effected by controller |
| PCB color | White/yellow/black | Working time | 30000hrs |
| Safety linsting: | CE RoHS compliant | Warranty: | 2yrs or extent |
| Application | All place or environment for decoration and where needs waterproof light fixture | ||
Diagrams:
Resales suit 5050SMD LED for resale
Wire connection:
Wire connection:
CONTROLLER RGBW:
1) Home Furnishing light and colorful life, DIY home light corridors, stairs,trails,Windows.
2) Hotel decoration, theatre, club, shopping mall, festivals and performances.
3) Building decoration lighting, arch, crown and bridge edge lighting, safety lighting and emergency.
4) Widely used in sign letter backlighting, concealed lighting and advertising sign lighting.
5) Applicable to car and aircraft model decoration, contour lighting or borde
