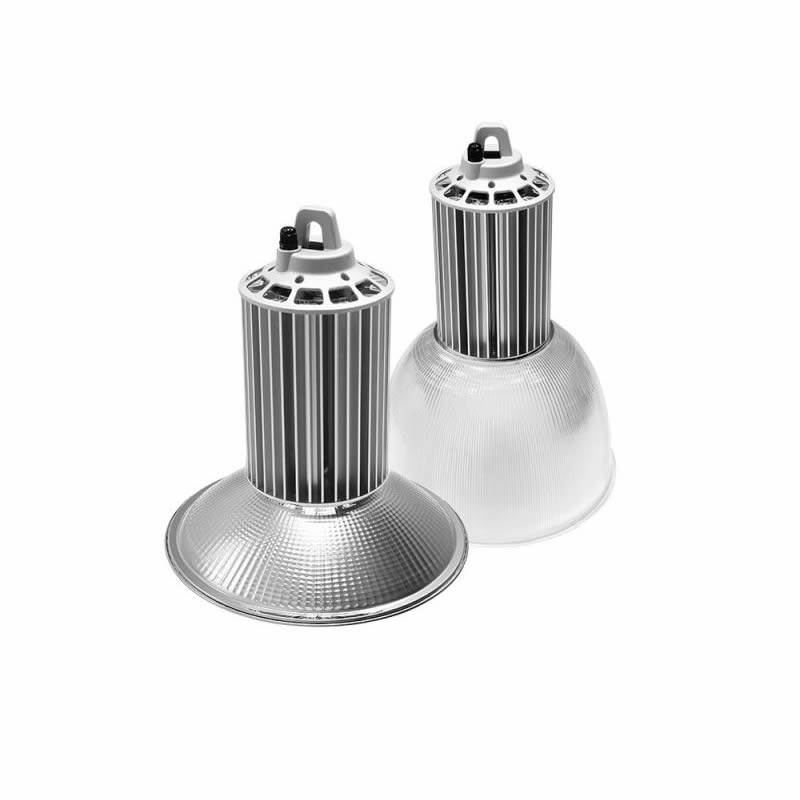

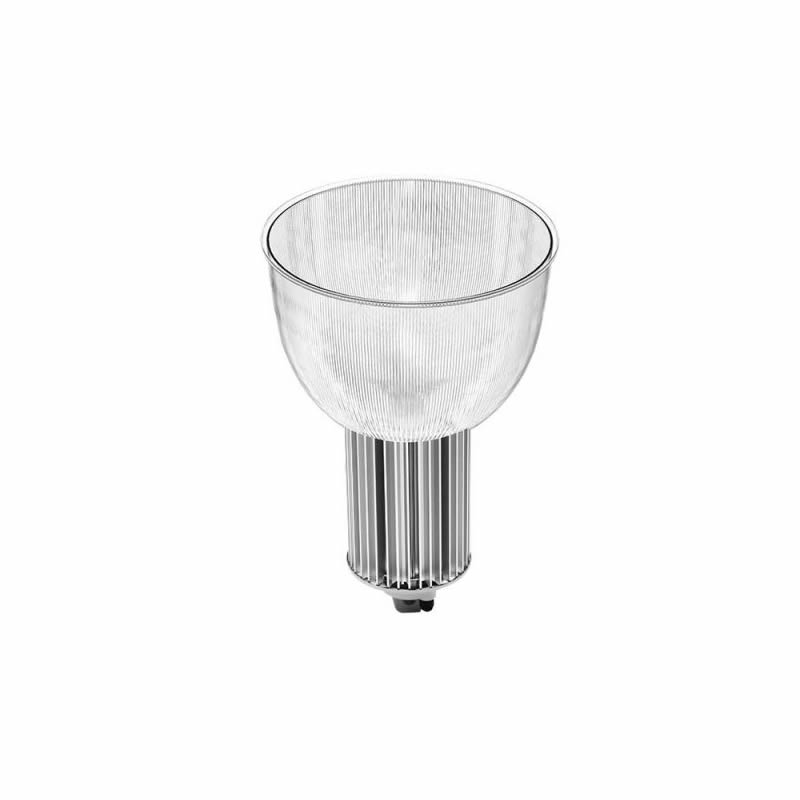

LED High bay light with reflector

LED High bay light with reflector
1. Integrated heat sink design no riveting.
2. LED Drivers isolated from the heat sink.
3. Aluminum/Acrylic reflector optional for classic shape.
4. Can be IP65 rated after adding a wire-guard.
5. 60W~300W available.
6.5 years warranty as standardextent warranty available

Description and Specification

LED Highbay Light with reflector


1.Simple elegant but good heat sink design
2.Wide range wattage 100~240W for option
3.90-265V/100-277V/485V available
4.Brand LED chips+driver with stable quality
5.High light effect to 130lm/w as standard
6.5years or extent warranty available
7.OEM customization requirement acceptable




Specification
 Product type LED HIGHBAY Voltage 90-277v AC
 LED Brand Cree/philips/Osram Driver brand philips/mw
 Power 60w-240w for option CRI >80
 Beam Angle 60/120 Operating Temperature -20~+45
 IP IP65 CCT 30K/40K/50K
 Housing color Black as stanard Light efficience >110-160lm/w
 Materials Diecasting Al+LEDs Installation way wire or holder
 OEM/ODM Acceptable Working time50000hrs
 Safety linsting: CE RoHS compliant Warranty: 5yrs or extent
 ApplicationIP65 UFO High Bay Light, LED Industrial lighting fixture


Installation

LED Highbay Light with reflector


Installation processing

1. Turn off power supply to avoid the risk of electrical shock.
2. Proper grounding is required to ensure personal safety.
3. Make certain power is OFF before starting installation or maintenance.
4. Do not recess the fixture.
5. A qualified electrician should do all work.
6. DO NOT TOUCH THE LED CHIPS. DAMAGE MAY OCCUR



Aplication

LED Highbay Light with reflector


1.Simple elegant but good heat sink design
2.Wide range wattage 100~240W for option
3.90-265V/100-277V/485V available
4.Brand LED chips+driver with stable quality
5.High light effect to 130lm/w as standard
6.5years or extent warranty available
7.OEM customization requirement acceptable




Specification
 Product type LED HIGHBAY Voltage 90-277v AC
 LED Brand Cree/philips/Osram Driver brand philips/mw
 Power 60w-240w for option CRI >80
 Beam Angle 60/120 Operating Temperature -20~+45
 IP IP65 CCT 30K/40K/50K
 Housing color Black as stanard Light efficience >110-160lm/w
 Materials Diecasting Al+LEDs Installation way wire or holder
 OEM/ODM Acceptable Working time50000hrs
 Safety linsting: CE RoHS compliant Warranty: 5yrs or extent
 ApplicationIP65 UFO High Bay Light, LED Industrial lighting fixture



LED High bay light with reflector
